Powerful Warning Horn for
Hazardous Locations

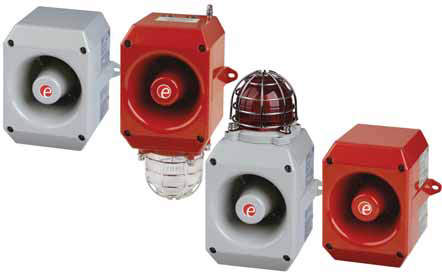

The new D2x family from E2S Warning
Signals is based on a high-output 116-
dB(A) SPL 64-tone four-stage horn sounder,
which can be combined with a powerful 5
or 10 Joule Xenon strobe in a compact 130-
mm-wide, 125-mm deep (~5 x 5 in.) diecast
marine grade aluminum housing.
Designed for use in hazardous locations, the
D2x has gained approvals permitting use in
regions covered by IECEx, ATEX, NEC and
CEC regulations. With four remotely triggered
alarm stages, the D2x can signal multiple
safety warnings or process events. In
the combined units, the Xenon strobe beacon
and the alarm horn sounder can be activated
individually via separate terminations
or linked for simultaneous operation from a
common power supply. The horns offer 64
internationally and nationally recognized
alarm tones plus continuous, intermittent,
sweeping and alternating tones with an
effective range of up to 125 m (410 ft);
multi-sounder systems are automatic synchronized.
In combined audible/visible
units the polycarbonate beacon lenses are
user-changeable, with a choice of amber,
blue, clear, green, magenta, red and yellow
colors. For maximum compatibility, the
devices can be powered from 24 or 48 VDC
or 115 or 230 VAC.
www.e2s.com
