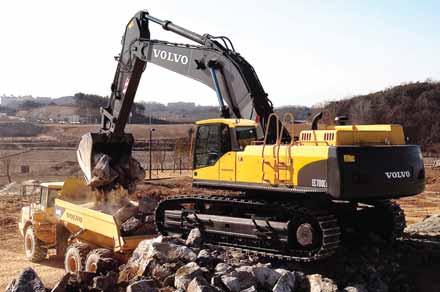

Hydraulic Excavators Pull Their Own Weight—and More
Rated at 235 kW (320 hp) for the EC460CL and 316 kW (430 hp) for the EC700CL, Volvo’s V-ACT (Volvo Advanced Combustion) engines offer high torque at low rpm with exceptional fuel efficiency. The power plant is coupled with intelligent hydraulics that provide boom, arm and swing priority. In-cab, operator selectable hydraulic flow and pressure increases performance, especially when frequently changing attachments. The new machines also feature a more rugged undercarriage and superstructure. Strengthened high tensile steel undercarriage frames absorb stress with rigid strength, while reinforced, doubledwelded booms and arms offer capacity, reach and force. Sealed-for-life, greased track links prevent leaks, reduce noise and increase service life. Protected hydraulic lines and bolt shields prevent collision damage.
Servicing has been simplified, assisted by large service panels that offer ground level access for easy convenient, straightforward and safer inspection and servicing. Centralized lubrication points and long service intervals also reduce downtime. An incab LCD monitor conducts a self-diagnostic check routine. The onboard MATRIS system fitted to both the EC460CL and EC700CL can provide detailed operating history analysis, including machine utilization and efficiency. Data captured by the onboard computer can be used to generate graphs and reports on operating performance. Optional equipment available for both the EC460CL and EC700CL includes hydraulic kits to maximize machine performance, a choice of Quick Fits to speed attachment change, factory or dealer-fit FOG (Falling Object Guard) and FOPS (Falling Object Protective Structure) cab protection, rear view camera, full length derailing shield and a wide range of operator seats.
