Underground Mine Utility Vehicle Updated

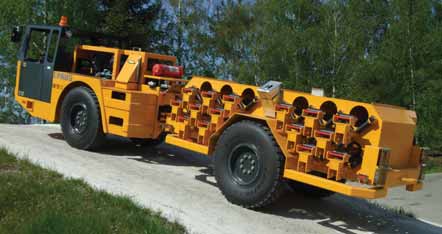

One of the large range of machines designed by Germany’s Hermann Paus Maschinenfabrik, the Universa 50, has enjoyed an excellent reputation worldwide for more than 30 years. It is well-known for its low maintenance demands and a sturdy chassis that is widely regarded as “indestructible,” according to Paus. Now the manufacturer has updated the unit to meet new customer requirements.

For this new revision, Paus focused on easy access for maintenance work and driver comfort. For example, the central electric system is accessible from outside hatches as well as from the inside, the battery case is movable, and flaps ensure easy access to the engine, hydraulic system and filters. The machine can be equipped with an enclosed driver’s cabin or with a shelter offering sufficient room for three people. The driver’s seat can be turned 90° and provides optimum comfort and visibility for the driver during forward and reverse movement. As an option, the closed ROPS/FOPS cabin can be equipped with air conditioning while other additional equipment, such as exhaust-gas treatment systems, is available upon request.

Engine options include air- and water-cooled Deutz or Mercedes engines rated up to 115 kW, linked to a six-speed transmission. The four-wheel drive Universa 50 achieves speeds up to 25 km/h and can climb a maximum grade of 40%. Various cassettes, such as platforms, personnel cabins, mixers, ANFO systems, tanks, are available for the vehicle.

www.paus.de


As featured in Womp 08 Vol 7 - www.womp-int.com
